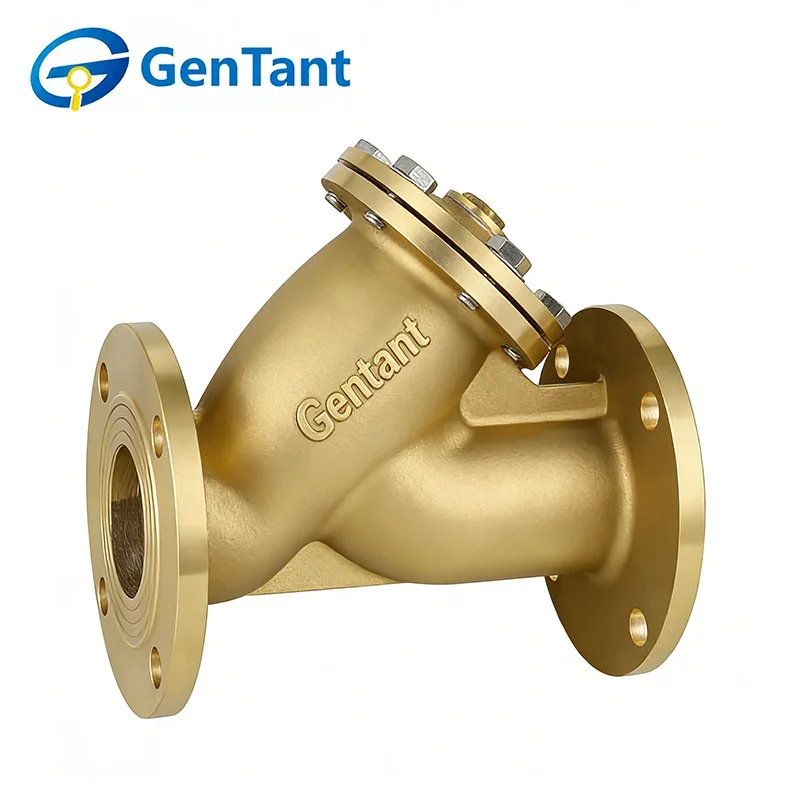

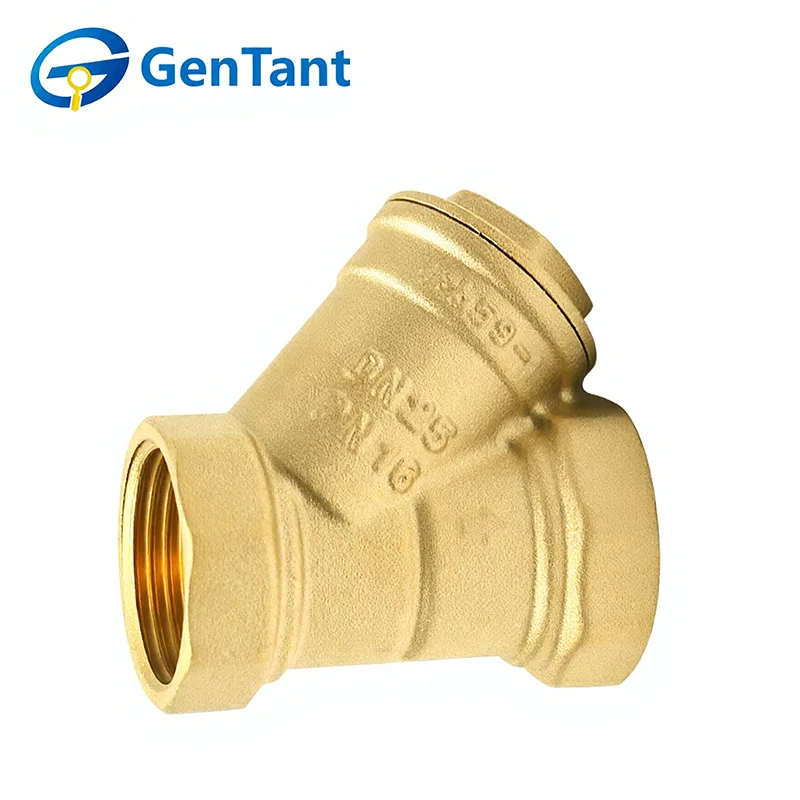

Flanged Strainer Valve

Flanged Strainer Valves are essential components designed to filter out debris, particles, and impurities from liquids and gases, protecting pipelines and downstream equipment while ensuring smooth and efficient system operation. With a flanged connection design, these valves provide secure installation, easy maintenance, and high flow capacity, making them ideal for industrial, chemical, and energy applications.

Product Feature and Application

Flanged Strainer Valves are characterized by their bolted flange ends, which provide superior structural integrity and a leak-proof seal for large-diameter pipelines. Their primary feature is the ease of inline maintenance, allowing for quick removal of the filter element in high-flow systems. They are widely applied in commercial building mains, fire protection systems, and large HVAC chillers, where secure connections and consistent protection against large debris are required.

Product Parameter

Technical Specification

Nominal Pressure: 1.6 MPa

Working Medium: Water, Oil, Non‑corrosive and Non‑flammable Gases

Operating Temperature: -20 °C ≤ T ≤ 150 °C

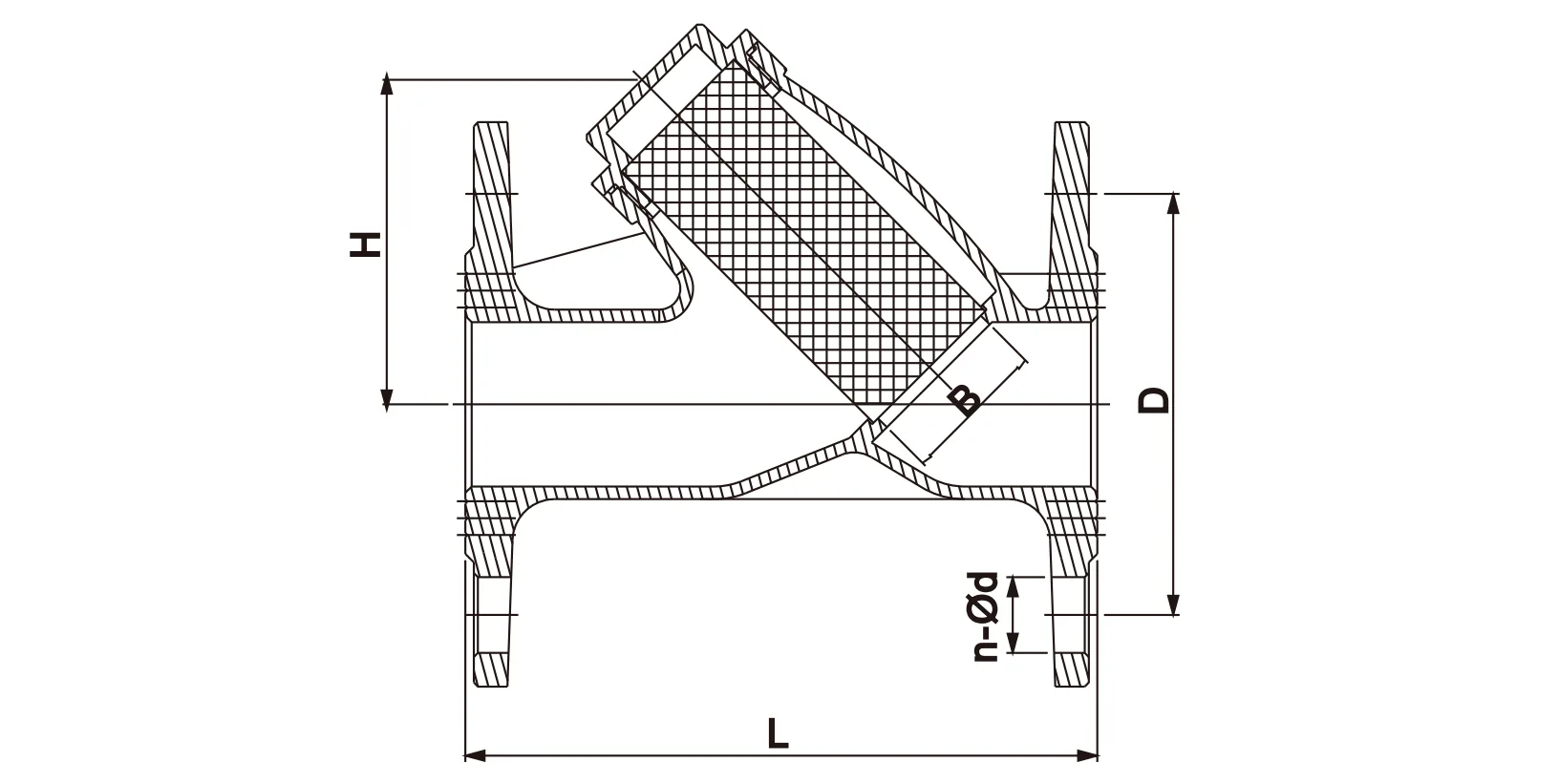

Product Dimension

Installation Guidelines

System Preparation: Ensure the pipeline is flushed of all construction debris before installation. Remove protective caps and verify the interior mesh is seated correctly.

Directional Flow: Flanged Strainer Valves are unidirectional. Ensure the arrow on the valve body points in the direction of fluid flow. For Y-strainers, the screen housing must point downward to allow gravity to assist in debris collection.

Correct Tooling: Apply a wrench only to the hexagonal end closest to the pipe being threaded. Do not apply torque across the valve body, as this can cause permanent deformation.

Thread Sealing: Use PTFE tape or sealant strictly on male pipe threads. Do not allow excess sealant to enter the valve, as it may clog the filter mesh.

Spacing: Ensure there is sufficient clearance below the strainer cap to allow for screen removal and cleaning during future maintenance.

Operating Instructions

Function: These Flanged Strainer Valves are designed for mechanical filtration only. They are passive components that protect downstream equipment like pumps, meters, and heat exchangers.

Initial Commissioning: After the system starts, monitor the pressure drop across the strainer. A significant drop indicates the screen has collected initial "startup" debris and requires immediate cleaning.

Pressure Limits: Ensure operating conditions do not exceed the stamped pressure and temperature ratings to prevent housing failure.

Inspection & Maintenance

Regular Cleaning: Periodically unscrew the strainer cap to remove and clean the stainless steel mesh. Frequency depends on the fluid's sediment levels.

Seal Inspection: Inspect the cap gasket or O-ring whenever the strainer is opened. Replace if any signs of wear or flattening are visible to prevent leaks.

Filter Care: Clean the mesh with a soft brush and water. Do not use a damaged or deformed screen, as bypassed debris will damage downstream components.

Safety Protocol: Never attempt to open the strainer cap while the system is under pressure. Isolate the section and relieve all internal pressure before servicing.

Seal Compensation: If a leak occurs at the cap, tighten the cap slightly. If leakage persists, replace the gasket rather than over-tightening.
