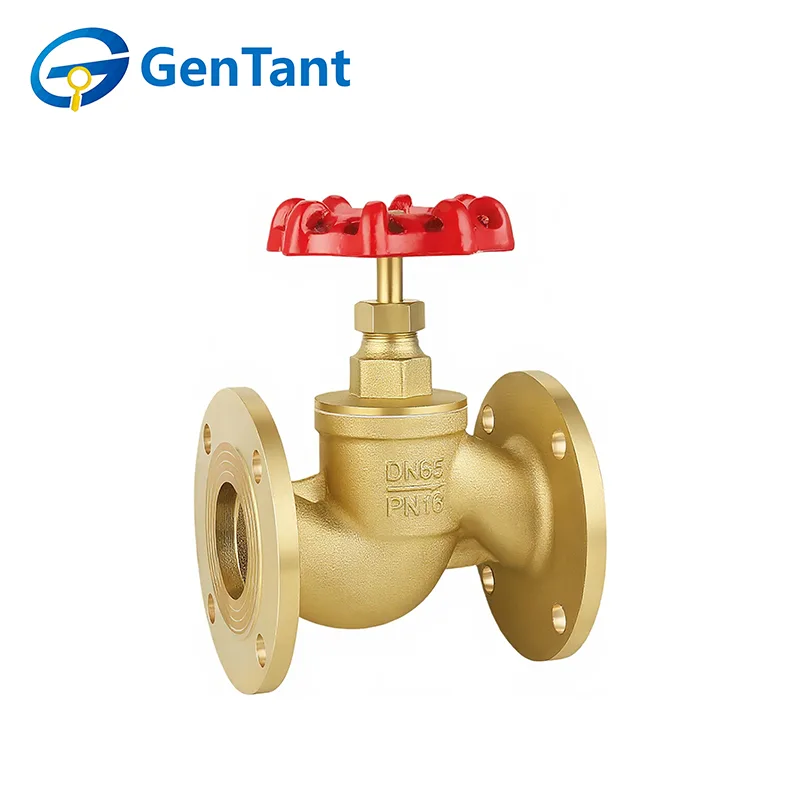

Flanged Globe Valve

A Flanged Globe Valve is a robust industrial flow control device distinguished by its flanged ends, which facilitate a secure, bolted connection to pipeline flanges. Its core function is to provide precise throttling, regulation, and reliable shut-off of fluid flow. The valve operates via a linear-motion stem that lowers a disc or plug perpendicularly onto a fixed seat ring, creating a characteristic change in flow direction (often an "S" path). This design allows for fine-tuned flow control and positive sealing. The flanged connection makes it suitable for high-integrity, leak-resistant installations in medium to high-pressure systems found in power generation, chemical processing, oil & gas, and large-scale HVAC applications.

Product Feature and Application

The Flanged Globe Valve is distinguished by its bolted end connections, ensuring a high-strength, leak-proof seal and easy installation in larger piping networks. Its primary feature is the Z-body design, providing exceptional throttling accuracy and reliable shut-off. In residential and commercial sectors, it is widely used for main water lines, HVAC chilling systems, and boiler feedwater control, where frequent maintenance and stable flow regulation are essential.

Product Parameter

Technical Specification

Nominal Pressure: 1.6 MPa

Working Medium: Water, Oil, Non‑corrosive and Non‑flammable Gases

Operating Temperature: -20 °C ≤ T ≤ 150 °C

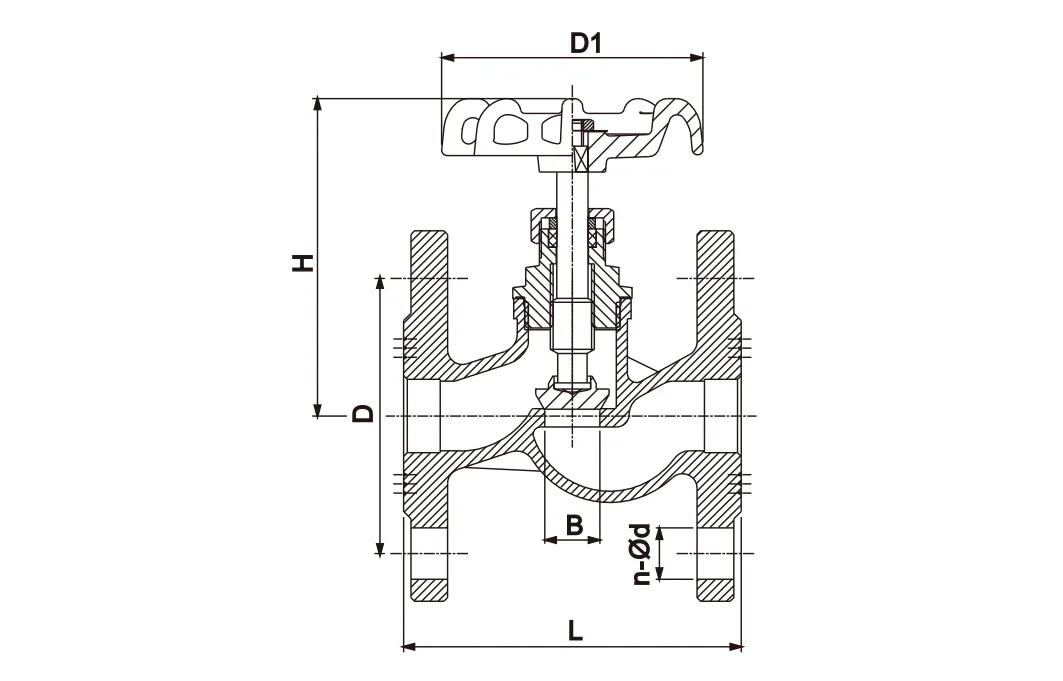

Product Dimension

Installation Guidelines

1.Clean and prepare the piping system thoroughly before installing the valve.

2.Before installation, remove any protective end caps and inspect the valve ports and seating surfaces to ensure they are clean.

3.Provide adequate support for the valve to avoid stress from connecting piping.

4.Confirm that the Flanged Globe Valve’s pressure and temperature ratings are suitable for the intended service conditions.

5.Before placing the valve into service, cycle it fully from open to closed to verify smooth operation.

6.After installation, check that the packing nut is properly tightened.

7.For gate and globe valves, it is recommended to install with the stem vertical and the operating handle on top.

Operating Instructions

1.Gate and globe valves are manually operated. Turn the handle counterclockwise to open and clockwise to close.

Inspection and Maintenance

2.Routine inspection and preventive maintenance are generally not required, aside from occasional adjustment of stem packing and periodic cycling of the valve from open to closed.

3.If a packing leak occurs, tighten the packing nut clockwise by about a quarter-turn—or until leakage stops—to increase sealing pressure on the stem packing. Never repack a valve while it is under system pressure.

4.When replacing the valve stem, also replace the packing material.

Replacement Parts

Under normal operating conditions, replacement parts are seldom needed. Recommended spare parts for each valve type include:

Globe valves: Handle, handle nut, packing, gland, packing nut, disc and seat.

When ordering parts, please provide the valve’s figure number, size, required part, and approximate age.
