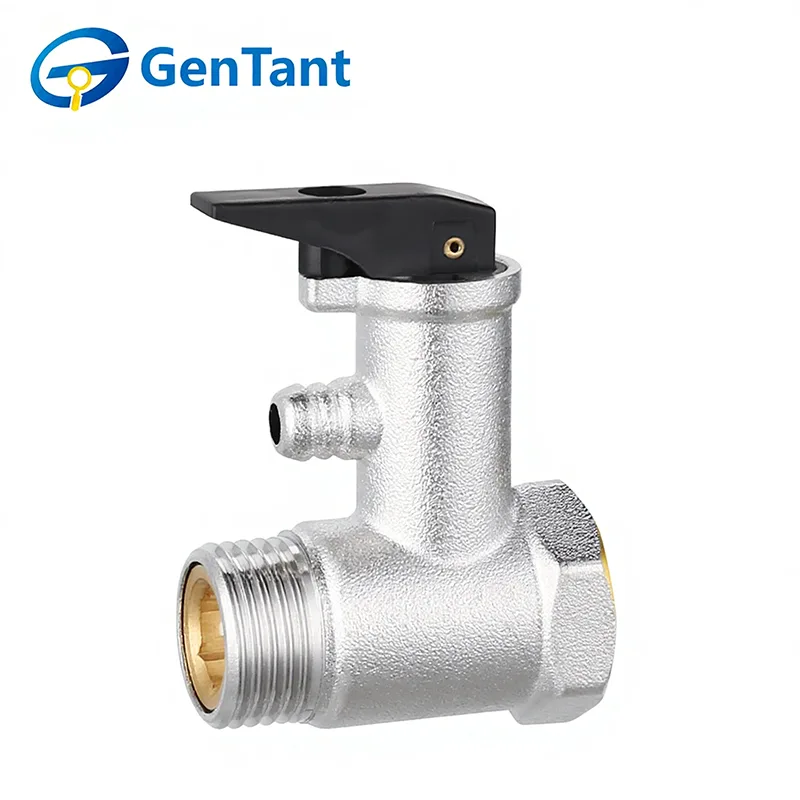

Male Thread Safety Valve

A Male Thread Safety Valve is a critical pressure relief device engineered to protect equipment and personnel by preventing overpressure conditions in fluid and gas systems. Characterized by its external (male) threaded connection, this valve design provides a secure, leak-resistant seal when installed into a corresponding female-threaded port or fitting. Its core function is to automatically open and discharge media when system pressure exceeds a pre-set safety limit, thereby averting potential equipment damage or hazardous failure. Once safe pressure is restored, the valve reseals, ensuring continuous system integrity and operational safety. This design is widely utilized in applications ranging from commercial boilers and pressure vessels to compressed air systems and process piping.

Product Feature and Application

Male Thread Safety Valves are utilized as safety protection devices across various systems, including heating, cooling, and domestic water supply. When system pressure increases and exceeds the valve's discharge pressure, the safety valve automatically activates to relieve the pressure and release the medium, thereby ensuring the safety of internal pipelines and equipment. Conversely, the valve automatically reseats and closes when the system pressure falls below the designated pressure.

Product Parameter (Specification)

Threaded connection type

DN15 (1/2")、DN15×20 (1/2" × 3/4")、DN20×25 (3/4" × 1")

Technical Specification

Medium: Water or glycol solution (maximum concentration 50%)

Operating Temperature:-20℃~ 110℃

Maximum Working Pressure: ≤16 bar

Rated Pressure (Pnr): 2.5-3-3.5-4-5-6-7-8-10 bar (pressure value non-adjustable)

Opening Pressure (Po): ≤Pnr 10%

Closing Pressure (Pf):≤Pnr 10%

Valve Body: High-temperature integral forging, thickened wall thickness, higher strength.

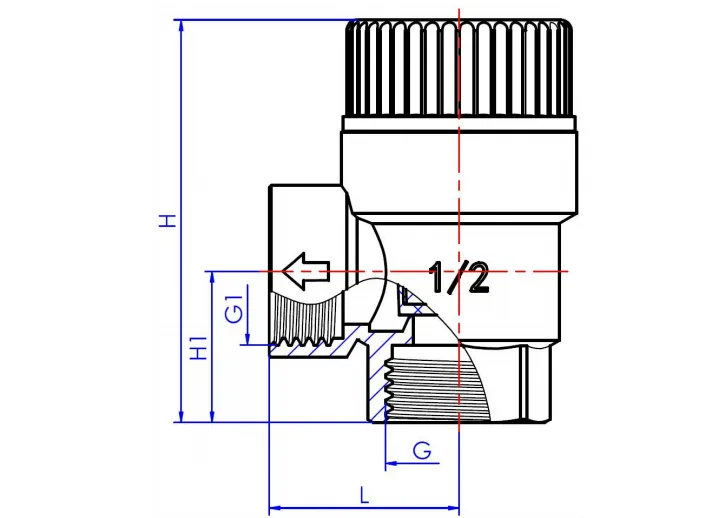

Product Dimension

Working Principle

The internal piston of the Male Thread Safety Valve utilizes spring tension to close the valve seat. When the system pressure exceeds the preset tension of the spring, the piston moves upward, away from the seat, and opens the water release channel. The set pressure of the safety valve is the maximum allowable working pressure for the system.

When the system pressure drops below the closing pressure of the safety valve, the tension exerted by the spring on top of the piston causes the water flow channel to close, restoring the system to its normal operating state.

The diameter of the safety valve outlet is equal to or greater than the diameter of the inlet; this design facilitates rapid pressure relief.

Installation and operation instructions

Before installing the Male Thread Safety Valve, qualified professional personnel should select the correct model based on the system characteristics and in compliance with relevant regulations. The valve body is marked with the direction of water flow, which must be strictly followed during installation.

1.Applicable Systems

1.1 Heating systems

The Male Thread Safety Valve should be installed at the top of the heat source (boiler, heat pump, etc.), or within a distance of 1 meter from the water supply pipe. There should not be any form of shut-off valve between the safety valve and the connection pipe of the heat source.

1.2 Domestic Hot Water Systems

The safety valve should be installed at the cold water inlet of a storage-type hot water tank, ensuring there are no shut-off valves of any form on the piping between these points.

1.3 Compressed Gas Systems

The safety valve is suitable for use in compressed gas systems.

2.Installation Method

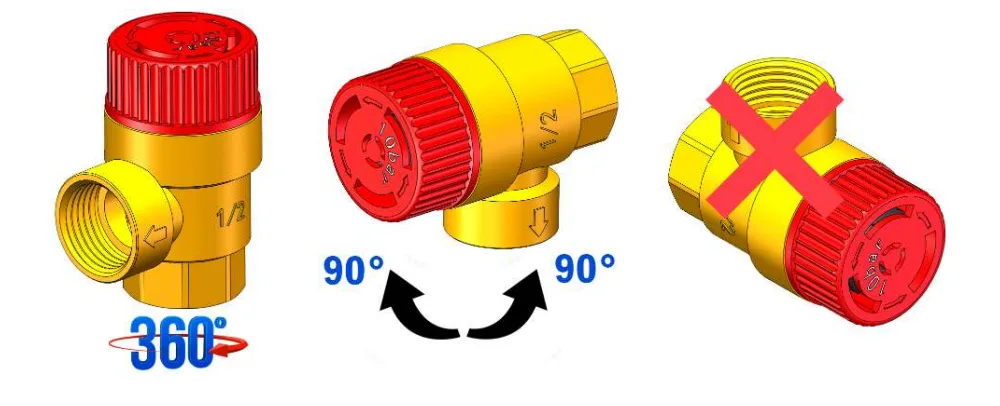

Before installation, ensure that the system pressure matches the safety valve's opening pressure; ensure the system is completely depressurized and cooled down; ensure there are no shut-off valves of any form between the system and the safety valve; flush the system pipelines. The safety valve can be installed vertically or horizontally, but cannot be installed inverted (as shown in the figure below). Following these installation methods can prevent impurities and sediments from affecting normal operation.

3.Installation Precautions

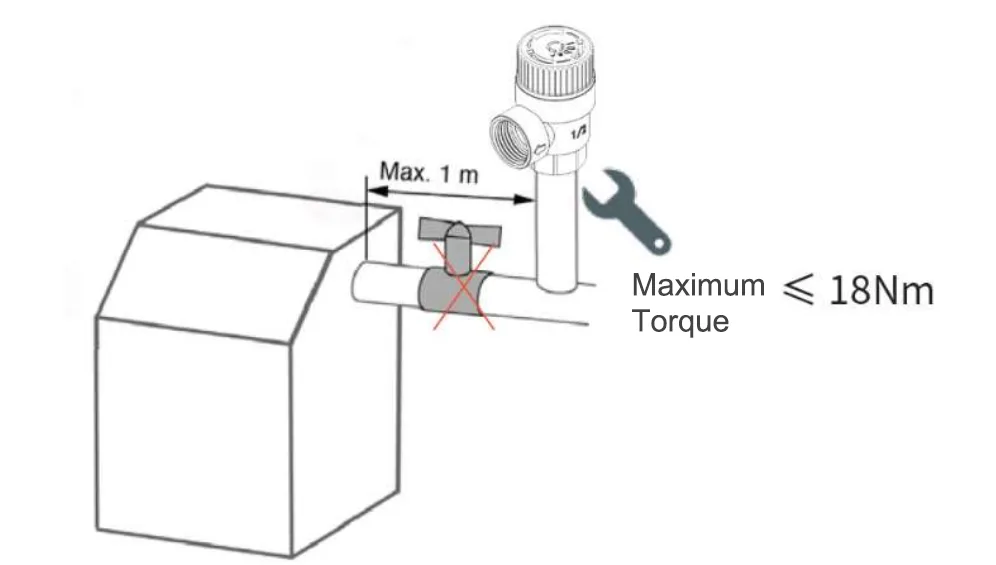

3.1 When installing the safety valve, the torque should be ≤18N·m to prevent valve deformation, which could lead to failures. There should be no shut-off valves of any form (ball valves, check valves, etc.) between the system and the safety valve, as shown in the figure below.

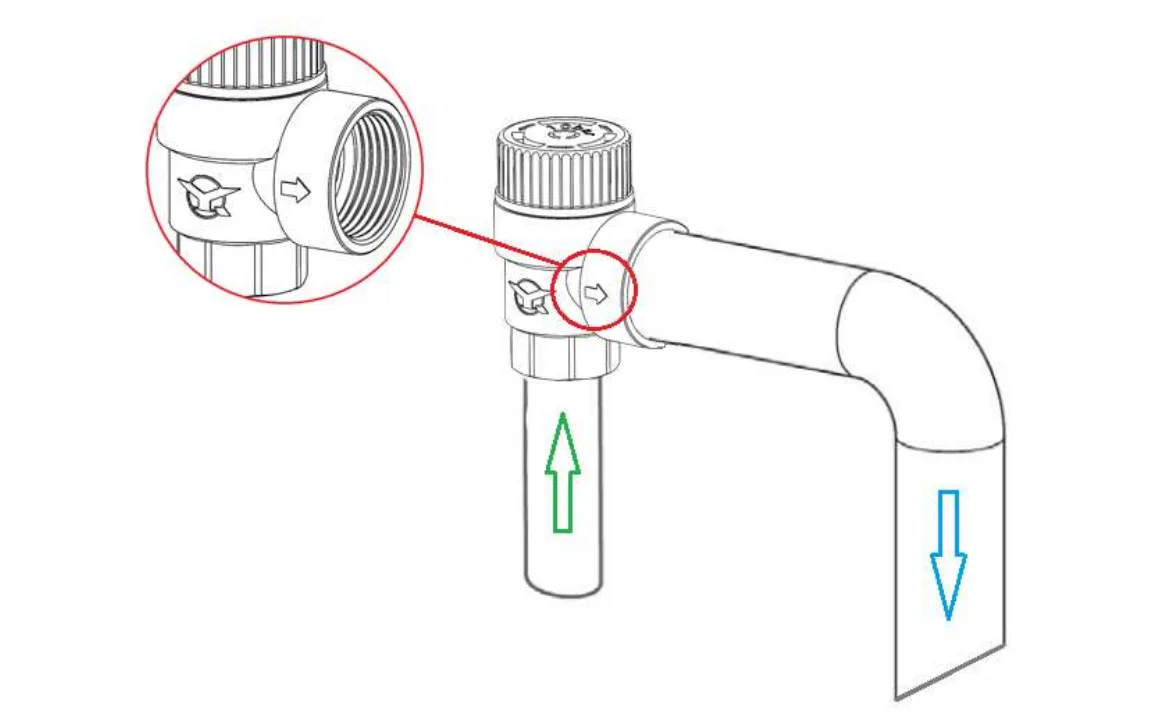

3.2The diameter of the piping connecting the system to the safety valve must be greater than or equal to the inlet pipe diameter of the safety valve. Ensure the flow direction of the medium aligns with the direction of the arrow on the safety relief port, as shown in the figure below. It is recommended to place a reminder sign near the safety valve relief port stating: “Do not block the outlet during system operation.”

3.3 Do not install shut-off valves or other valve accessories that prevent the flow of medium on the pressure relief port. Ensure the medium can overflow from the pressure relief port smoothly and unobstructed. The drain pipe should have a maximum of two elbows and a length of≤2 meters.

3.4 Ensure there is a floor drain or a receiving device near the safety valve installation location for safe drainage during commissioning, fault maintenance, etc., to avoid personal injury or property loss caused by flowing medium.

Commissioning

Rotate the handwheel once in the direction of the arrow on the top handwheel of the safety valve. Medium should be discharged from the pressure relief port at this time. If no medium is discharged, check if the pressure relief port is blocked or if the safety valve is damaged, and check the system pressure status. The handwheel rotation can only be used to check if the safety valve is working properly. Do not rotate the handwheel multiple times or in the reverse direction, as this will cause damage to the safety valve.

 Maintenance

Recommendation: Perform a functional test every 6 months.
