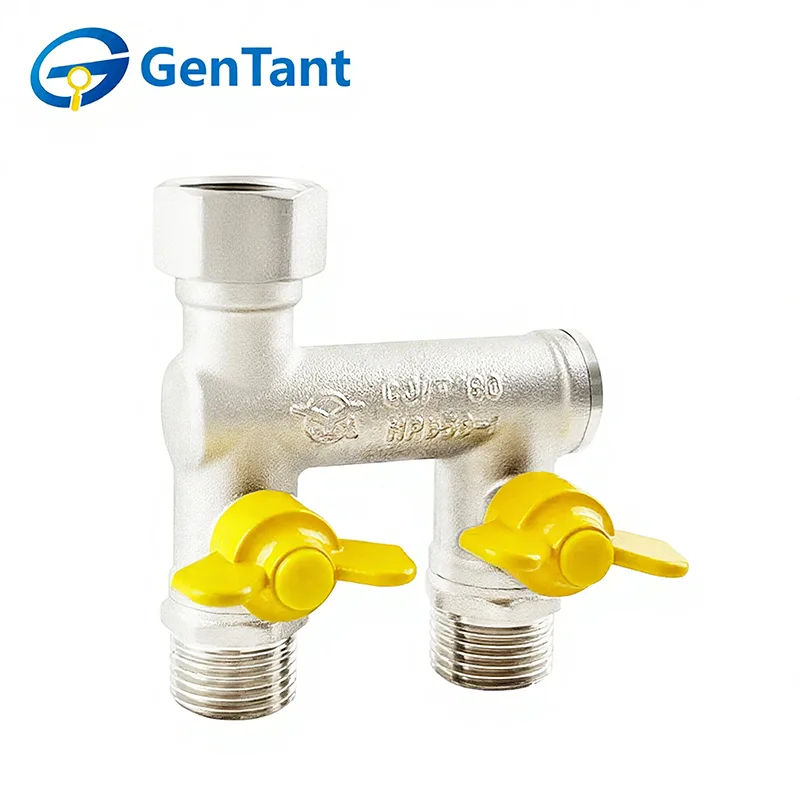

Three-Way Gas Valve

Three-Way Gas Valves are critical control components used in gas systems to direct, mix, or divert gas flow between multiple pipelines, ensuring flexible operation and efficient system management. These valves are widely applied in industrial gas equipment, energy systems, and commercial gas applications where precise flow switching and safety are essential.

Product Feature and Application

Three-Way Gas Valves feature a versatile T-port or L-port design that allows for the diversion or mixing of gas flows between three ports. Their primary feature is the ability to replace multiple two-way valves, reducing space and leak points. These are essential for dual-fuel boiler systems, gas manifold switching, and laboratory testing setups. Their precision-ground ball ensures a bubble-tight shut-off across all flow configurations.

Product Parameter

Technical Specification

Nominal Pressure: 1.6 MPa

Working Medium: Domestic Town Gas, Natural Gas, Liquefied Petroleum Gas (LPG)

Operating Temperature: -10 °C ≤ T ≤ 80 °C

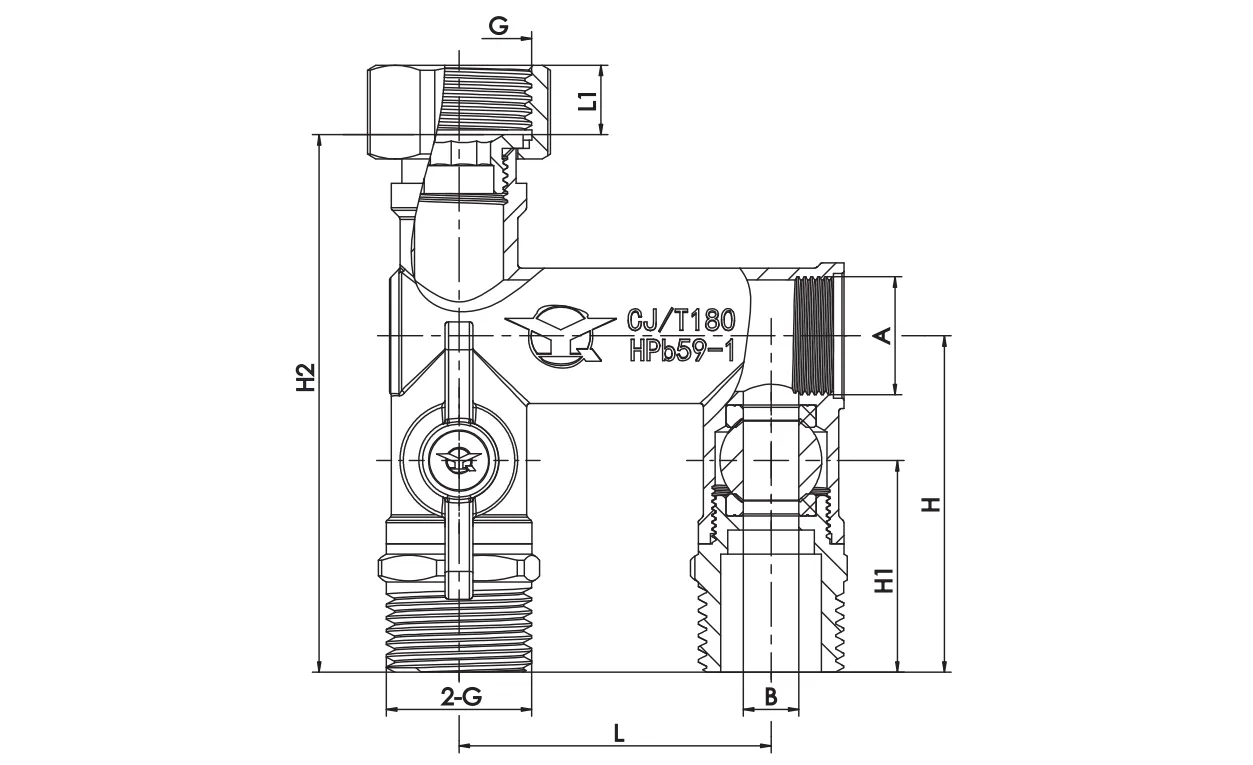

Product Dimension

Installation Guidelines

Professional Installation: Three-Way Gas Valves must be installed by certified gas technicians. Ensure the gas supply is shut off and the work area is well-ventilated.

Thread Integrity: Use only gas-rated PTFE tape (typically yellow) or specialized pipe dope. Apply sealant to male threads only, ensuring no excess material enters the valve body to obstruct the seal.

Torque Management: Use a proper wrench on the valve end closest to the pipe. Do not over-tighten, as excessive force can crack the valve body or damage the internal seats, leading to hazardous leaks.

Leak Testing: After installation, never use a flame to check for leaks. Apply a certified leak-detection solution or soapy water to all joints; bubbles indicate a leak that must be corrected immediately.

Operating Instructions

Function: Gas valves are for on/off service only. They must remain in the fully open or fully closed position. Partial opening can cause seat erosion and seal failure.

Handle Position: The handle serves as a visual indicator. When the handle is parallel to the pipe, the valve is OPEN; when perpendicular, it is CLOSED.

Manual Operation: These Three-Way Gas Valves are designed for manual operation. Do not use tools or "cheater bars" to turn the handle. If a valve is difficult to operate, it likely requires replacement.

Inspection & Maintenance

Periodic Checks: Inspect valves at least twice a year for signs of corrosion, handle damage, or gas odors. Cycle the valve (Open/Close) periodically to ensure the ball does not seize.

No Disassembly: Due to critical safety tolerances, do not attempt to disassemble or repair the internal components of a gas valve. If the valve leaks or fails to shut off, replace the entire unit immediately.

Environment: Keep the valve area free of corrosive chemicals or high-moisture accumulation, which can degrade the brass body or stem seals over time.

Emergency Protocol: In case of a gas leak, immediately close the upstream main valve, evacuate the area, and contact emergency services.
