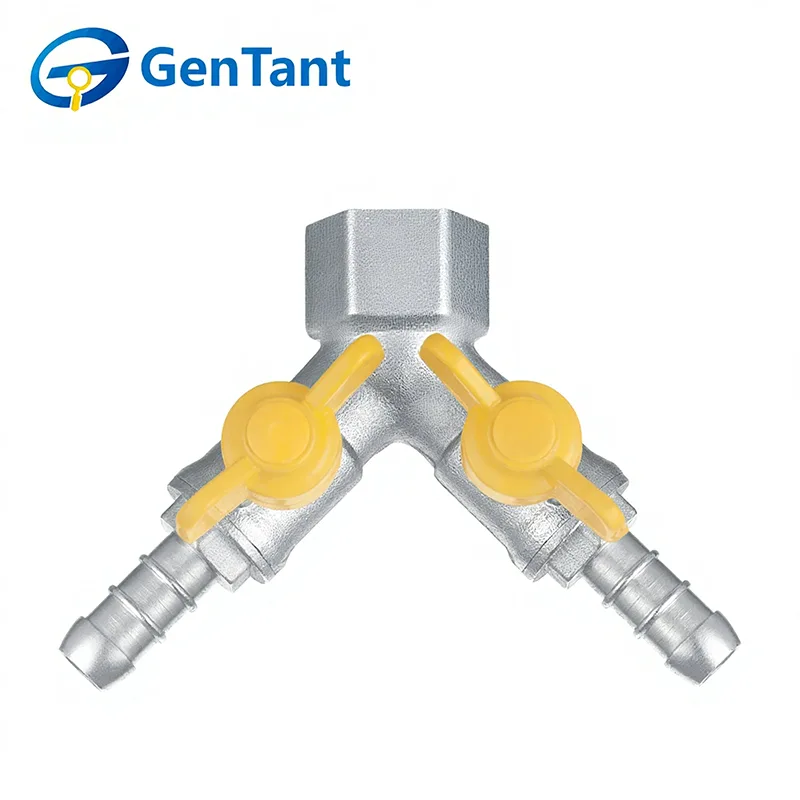

Y-shaped Diverter Valve

Y-shaped Diverter Valves are important flow control components designed to direct, split, or combine fluid or gas flow within pipeline systems. With a Y-shaped structure, these valves enable smooth flow diversion while reducing turbulence and pressure loss, making them suitable for industrial processing, energy systems, and fluid distribution applications.

Product Feature and Application

Y-shaped Diverter Valves feature a unique angled body designed to split a single gas source into two separate branch lines with minimal turbulence. Their primary feature is the integrated flow diversion which eliminates the need for extra T-junction fittings, reducing potential leak paths. They are widely applied in dual-appliance connections, such as splitting a main gas line for both a furnace and a water heater in tight utility rooms.

Product Parameter

Technical Specification

Nominal Pressure: 1.6 MPa

Working Medium: Domestic Town Gas, Natural Gas, Liquefied Petroleum Gas (LPG)

Operating Temperature: -10 °C ≤ T ≤ 80 °C

Thread conforms to ISO 228 standard

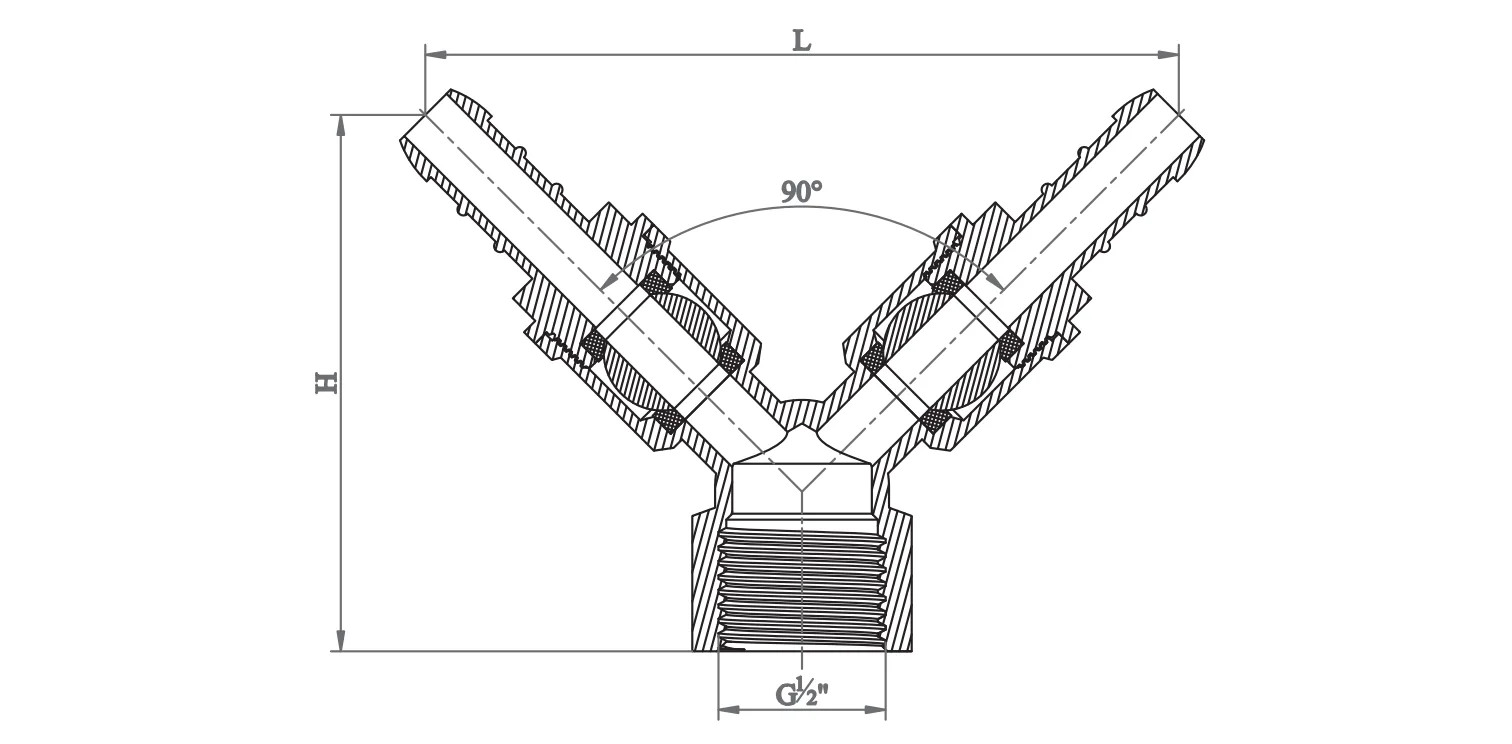

Product Dimension

Installation Guidelines

Professional Installation: Y-shaped Diverter Valves must be installed by certified gas technicians. Ensure the gas supply is shut off and the work area is well-ventilated.

Thread Integrity: Use only gas-rated PTFE tape (typically yellow) or specialized pipe dope. Apply sealant to male threads only, ensuring no excess material enters the valve body to obstruct the seal.

Torque Management: Use a proper wrench on the valve end closest to the pipe. Do not over-tighten, as excessive force can crack the valve body or damage the internal seats, leading to hazardous leaks.

Leak Testing: After installation, never use a flame to check for leaks. Apply a certified leak-detection solution or soapy water to all joints; bubbles indicate a leak that must be corrected immediately.

Operating Instructions

Function: Y-shaped Diverter Valves are for on/off service only. They must remain in the fully open or fully closed position. Partial opening can cause seat erosion and seal failure.

Handle Position: The handle serves as a visual indicator. When the handle is parallel to the pipe, the valve is OPEN; when perpendicular, it is CLOSED.

Manual Operation: These valves are designed for manual operation. Do not use tools or "cheater bars" to turn the handle. If a valve is difficult to operate, it likely requires replacement.

Inspection & Maintenance

Periodic Checks: Inspect Y-shaped Diverter Valves at least twice a year for signs of corrosion, handle damage, or gas odors. Cycle the valve (Open/Close) periodically to ensure the ball does not seize.

No Disassembly: Due to critical safety tolerances, do not attempt to disassemble or repair the internal components of a gas valve. If the valve leaks or fails to shut off, replace the entire unit immediately.

Environment: Keep the Y-shaped Diverter Valve area free of corrosive chemicals or high-moisture accumulation, which can degrade the brass body or stem seals over time.

Emergency Protocol: In case of a gas leak, immediately close the upstream main valve, evacuate the area, and contact emergency services.
