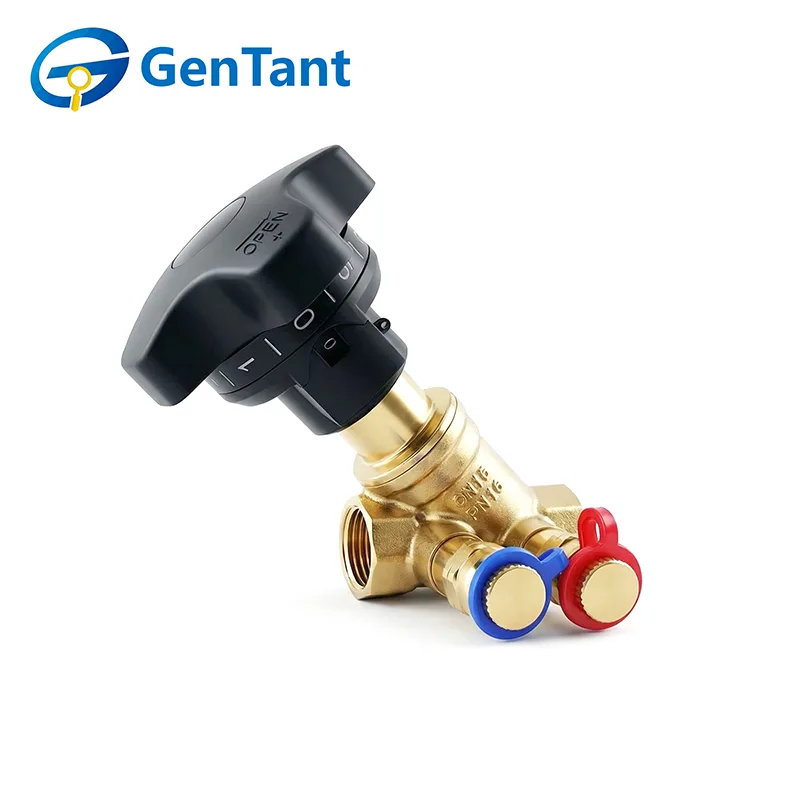

Static Balancing Valve

As a leading global supplier, we export reliable valve solutions worldwide, providing competitive wholesale pricing and comprehensive OEM/ODM services. Our factory is equipped with stringent quality control systems and dedicated technical support. If you are looking to source or buy static balancing valves, we invite you to inquire for our latest product catalog and request a quote. Benefit from our manufacturing expertise and seamless global shipping for your large-scale procurement or specialized engineering projects.

Product Feature and Application

The static balancing valve features a digital locking mechanism and a straight-flow valve body design, delivering precise equal-percentage flow control. It ensures accurate, tamper-proof adjustment and stable hydraulic performance across all system branches.

Specifically designed to resolve uneven heating/cooling in HVAC systems, it eliminates temperature variations by accurately distributing flow to each terminal. Ideal for district heating, commercial air conditioning, and industrial water circuits, it achieves full hydraulic balance, reduces pump energy consumption, and enhances overall system efficiency for both energy savings and improved comfort.

Product Parameter (Specification)

Applicable Fluids: Water, Glycol solutions (Max 50% glycol)

Operating Temperature Range: -20 ~ 120°C

Maximum Working Pressure: 16 bar (1.6 MPa)

Rapid Pressure Testing Capability: (Requires a dedicated smart gauge for detection; probe diameter is 3mm)

Excellent Regulating Performance: Precise adjustment with an opening indicator showing increments of 1/10th of a turn

Excellent Shut-off Function

Opening Degree Locking Function

Accuracy: ±10%

Main Materials

Hpb59-1 (Brass grade)

Handwheel: ABSSealing components: PTFE, EPDM

Threaded connection type

DN15 (1/2"), DN20 (3/4"), DN25 (1"), DN32 (1-1/4"), DN40 (1-1/2"), DN50 (2")

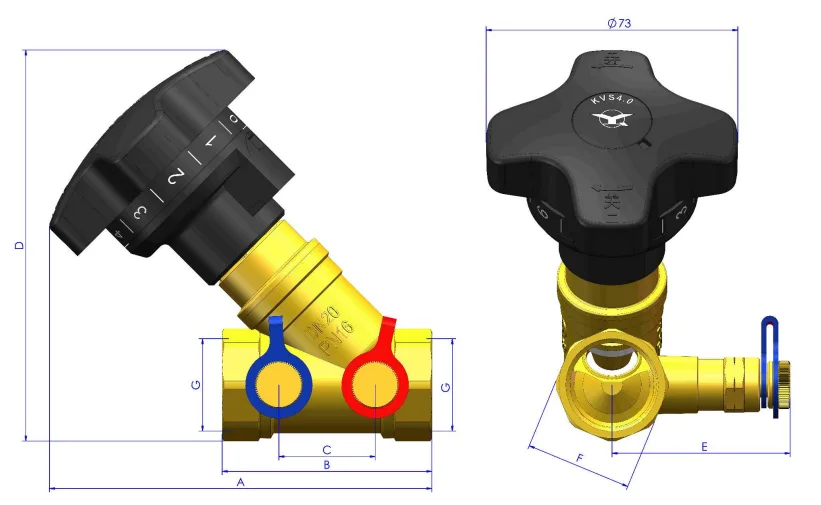

Product dimension

Valve installation guidelines and memory lock setting instructions:

The indicator on the valve handwheel should face a direction visible to the commissioning personnel. Obstructions should be avoided in front of the pressure test joint on the valve body to ensure that a dedicated smart instrument can be connected for detection during commissioning.

The pipeline where the valve is installed must have the same nominal diameter.

Maker sure there is no contaminants in the pipeline and the valve before installation .

To protect the valve from potential impurities, install a filter upstream of the valve.

During installation, the direction of medium flow should be consistent with the direction marked on the valve body.

The valve can be installed horizontally or vertically.

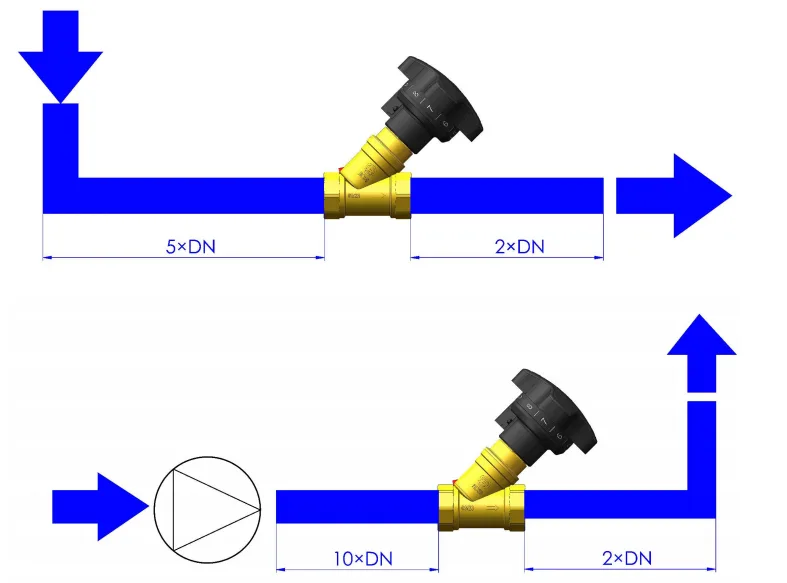

If the valve is installed after a curved pipe section, it is recommended to keep the straight pipe section before the valve at a minimum (length equals 5 times the nominal diameter of the valve).

If there is a circulator (pump) before the valve, the minimum recommended length of straight pipe is 10 times the nominal diameter of the valve itself.

After the valve has been commissioned, to maintain the system balance status, the valve opening should not be changed randomly during normal system operation, and in particular, the opening locking device should not be changed.

Memory Lock Setting

The Static Balancing Valve has a position memory device, remove the dust cap and follow these steps for the required locking setting:

1.Use a small tool in the small groove between the dust cap and the handwheel, and then take it out.

2.Insert a 5mm hexagon wrench into the center of the handwheel, and keep the rotation in the required position.

3.Press the dust cap back into place.
