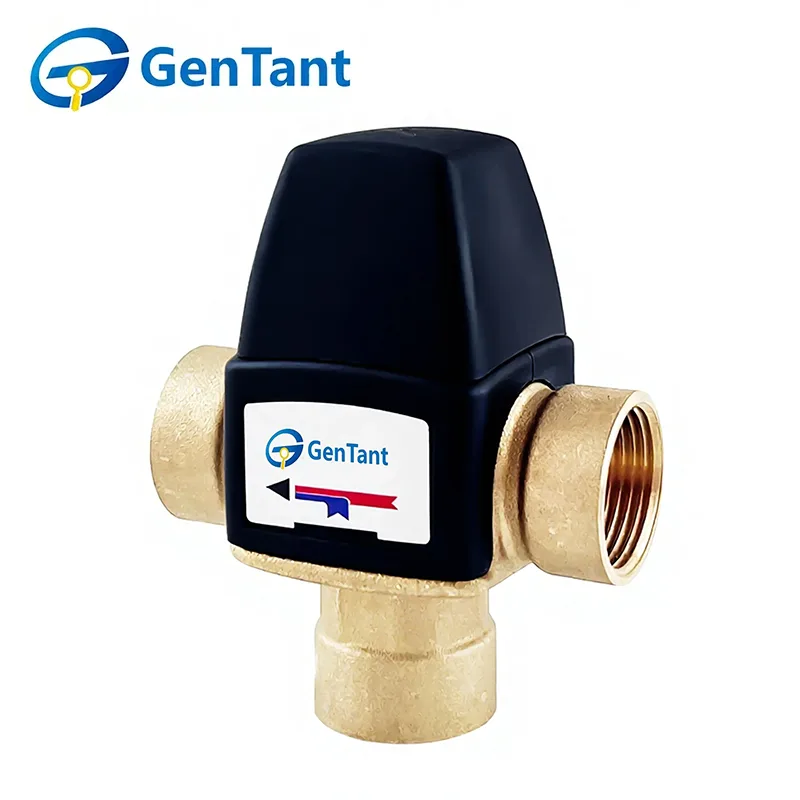

Thermostatic Mixing Valve With Side Water Outlet
Thermostatic Mixing Valves (TMVs) are critical safety devices designed to deliver blended water at a pre-set, stable temperature, preventing scalding and thermal shock. As a professional manufacturer of Thermostatic Mixing Valve With Side Water Outlet, GenTant leverages its advanced R&D and Testing Laboratory to ensure product excellence and drive innovation. Utilizing precision equipment, we rigorously verify every valve’s performance, guaranteeing long-term reliability and consistent safety. Our commitment to meticulous engineering and continuous development allows us to create the next generation of intelligent, durable valve solutions. We provide high-quality TMVs that offer superior temperature control, enhanced user safety, and robust performance for residential and commercial applications.
Product Feature and Application
1.1. GenTant Thermostatic Mixing Valve With Side Water Outlet is designed to maintain a given liquid temperature in domestic hot water systems (DHW) and floor heating systems.
1.2. Thermostatic mixing valves are equipped with a safety system against scalding with boiling water (the valve shuts off the mixed liquid flow if there is no cold water supply).
1.3. The constant temperature of the mixed water is set by the valve's adjusting knob within the established temperature range.
technical specifications
|
NO |
Characteristic |
Value |
|
1 |
Maximum temperature of working fluid, °С |
95 |
|
2 |
Maximum working pressure, bar |
10 |
|
3 |
Maximum differential pressure, bar |
2 |
|
4 |
Accuracy, °С |
±2 |
|
5 |
Temperature range, °С |
30-65 |
|
6 |
Working medium |
Water, aqueous solution of glycols with concentration up to 40% |
|
7 |
Recommended working pressure, bar |
1-5 |
|
8 |
Nominal diameter,mm |
15-20 |
|
9 |
Nominal flow rate, m³/h |
1.8 -2.0 |
Product Design and materials
Thermostatic mixing valve with side water outlet (Female Thread)
|
№ |
Item Name |
Quantity, pcs |
Material |
|
1 |
Valve body |
1 |
CW617N |
|
2 |
Piston |
1 |
PPS |
|
3 |
O-ring |
1 |
EPDM |
|
4 |
O-ring |
1 |
EPDM |
|
5 |
Spring |
1 |
S304-WPB |
|
6 |
Valve stem |
1 |
CW617N |
|
7 |
O-ring |
1 |
EPDM |
|
8 |
Gasket |
1 |
EPDM |
|
9 |
O-ring |
1 |
EPDM |
|
10 |
Valve seat |
1 |
CW617N |
|
11 |
Retaining ring |
1 |
S304 |
|
12 |
Thermoelement |
1 |
H62+CW617N+S304 |
|
13 |
Valve casing |
1 |
NYLON |
|
14 |
Adjusting knob |
1 |
NYLON |
|
15 |
Protective cap |
1 |
NYLON |
|
16 |
Sticker |
1 |
- |
|
17 |
Sticker |
1 |
- |

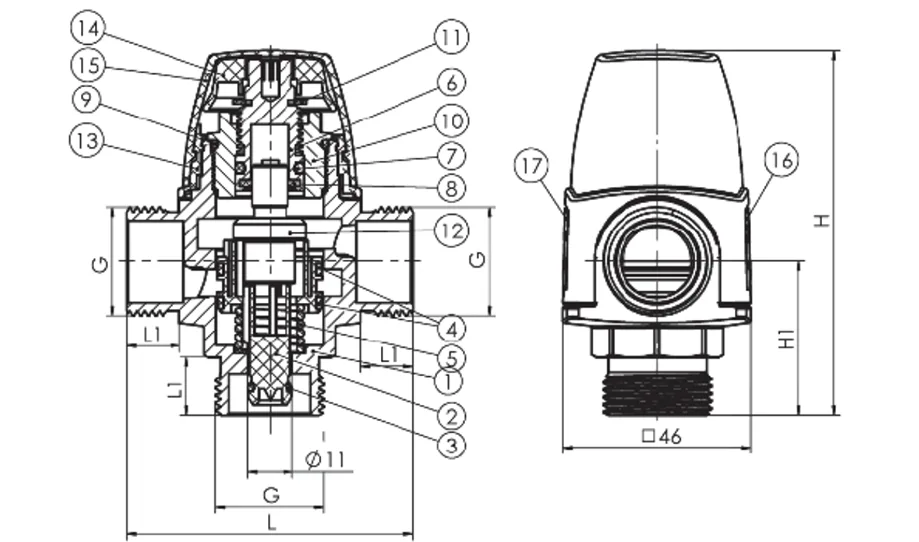

Dimensions
|
DN |
G |
φA(mm) |
L(mm) |
L1(mm) |
L2(mm) |
H(mm) |
H1(mm) |
Weight, g |
|
15 |
1/2 |
11.2 |
74 |
11 |
13 |
91 |
39.5 |
450 |
|
20 |
3/4 |
11.2 |
78 |
11.5 |
13 |
93 |
42.5 |
445 |
Thermostatic mixing valve with side water outlet (Male Thread)
|
№ |
Item Name |
Quantity, pcs |
Material |
|
1 |
Valve body |
1 |
CW617N |
|
2 |
Piston |
1 |
PPS |
|
3 |
O-ring |
1 |
EPDM |
|
4 |
O-ring |
1 |
EPDM |
|
5 |
Spring |
1 |
S304-WPB |
|
6 |
Valve stem |
1 |
CW617N |
|
7 |
O-ring |
1 |
EPDM |
|
8 |
Gasket |
1 |
EPDM |
|
9 |
O-ring |
1 |
EPDM |
|
10 |
Valve seat |
1 |
CW617N |
|
11 |
Retaining ring |
1 |
S304 |
|
12 |
Thermoelement |
1 |
H62+CW617N+S304 |
|
13 |
Valve casing |
1 |
NYLON |
|
14 |
Adjusting knob |
1 |
NYLON |
|
15 |
Protective cap |
1 |
NYLON |
|
16 |
Sticker |
1 |
- |
|
17 |
Sticker |
1 |
- |
Dimensions
|
DN |
G |
OA/DA(mm) |
L(mm) |
L1(mm) |
L2(mm) |
H(mm) |
H1(mm) |
Weight, g |
|
15 |
1/2 |
69 |
13 |
90 |
37.5 |
435 |
52.5 |
500 |
|
20 |
3/4 |
70 |
13 |
90 |
37.5 |
440 |
52.5 |
495 |
Installation and operation instructions
3.1. To ensure correct operation of the Thermostatic Mixing Valve With Side Water Outlet, it is necessary to make sure that there are no contaminants in the pipeline before installation. It is recommended to install a filter at the system inlet.

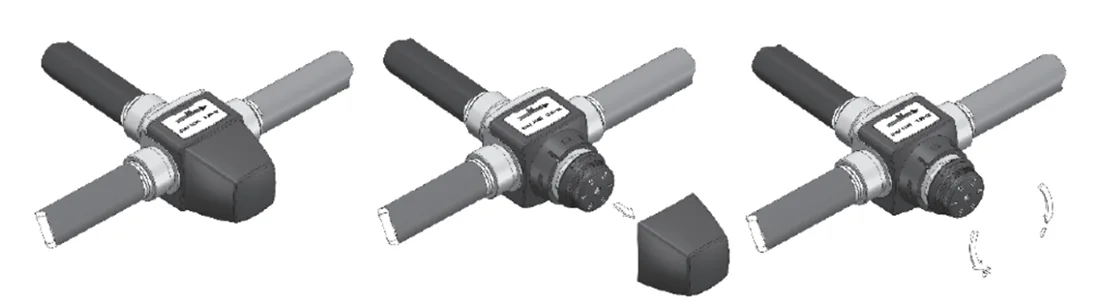

3.2. The mixer body indicates (see figure below):
hot water inlet with red color;
cold water inlet with blue color;
mixed water outlet with red-blue.
3.3. The water temperature at the outlet of the thermostatic mixing valve is set using the adjusting knob in accordance with the table below.
|
Handle Position |
Mixing Temperature, °C |
|
1 |
30 |
|
2 |
37 |
|
3 |
43 |
|
4 |
51 |
|
5 |
58 |
|
6 |
65 |
3.4. The use of lever wrenches during valve installation is not allowed.
3.5. Threaded connections must be made using FUM (fluoroplastic sealing material) or plumbing polyamide thread as sealing materials.
3.6. When installing the valve, do not exceed the torque values specified in the table:
|
Thread, inch |
Maximum Torque (thread), Nm |
|
1/2" |
30 |
|
3/4" |
40 |
3.7. Examples of installation schemes for DHW (Domestic Hot Water) and heating using thermostatic mixing valves:

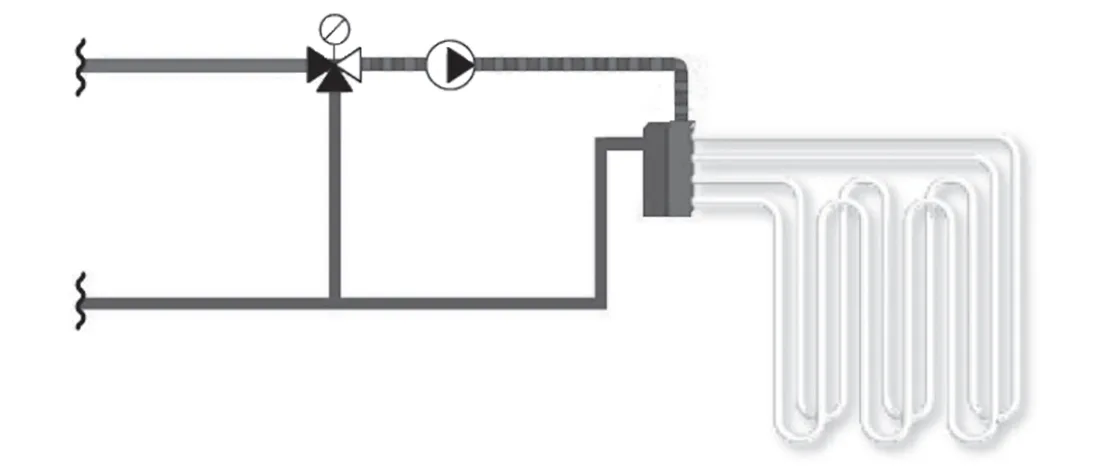

Example 1

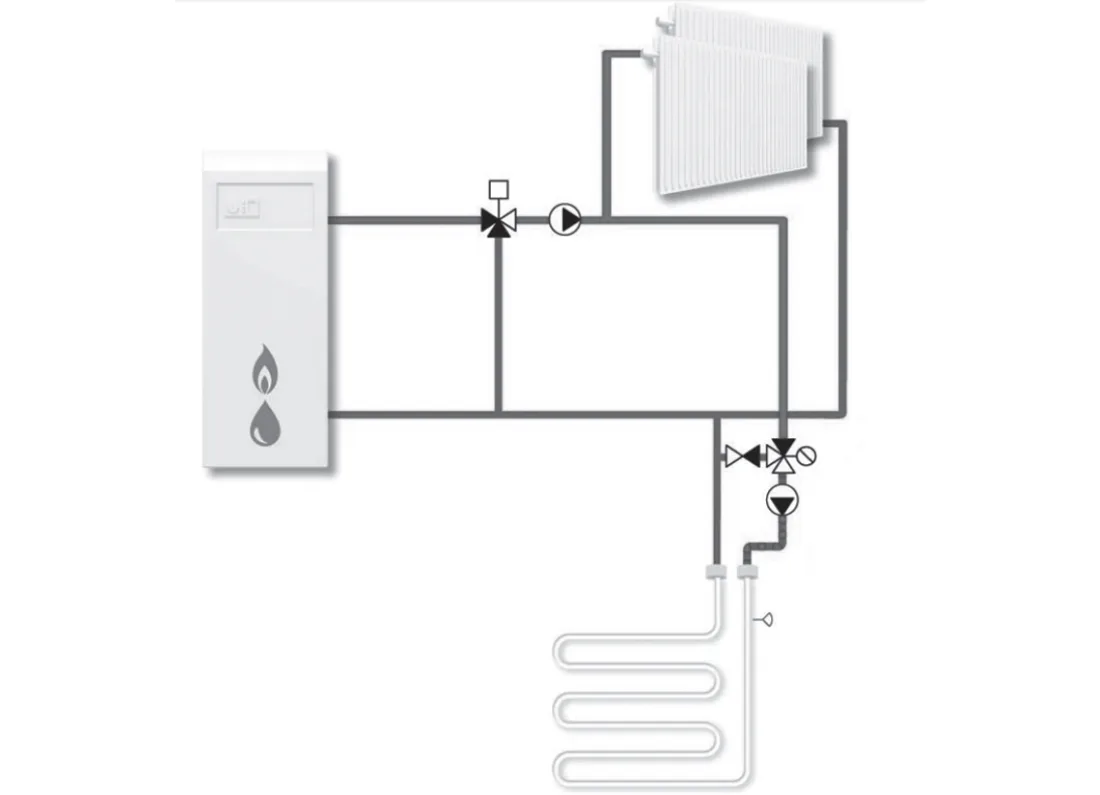

Example 2

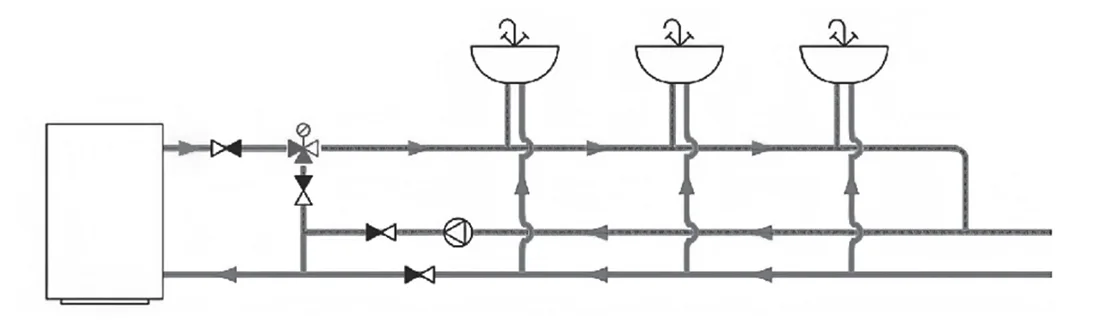

Example of DHW
Operation and technical maintenance
4.1. The thermostatic mixing valve must be operated at the pressure and temperature specified in the technical specifications table.
4.2. Repair and replacement of the valve is allowed only when the heat transfer fluid has been drained.
