How Does a Long Shank Return Valve Work?

Summary: Long Shank Return Valves are specialized check valves that prevent backflow in fluid systems such as underfloor heating or radiator loops. They ensure unidirectional flow, maintain thermal efficiency, and simplify maintenance with an extended shank design suitable for recessed or insulated installations.

Table of Contents

• Overview of Long Shank Return Valve
• Features and Applications
• Technical Specifications
• Installation Guidelines
• Operating Instructions
• Inspection and Maintenance
• Frequently Asked Questions
• Contact Us

Overview of Long Shank Return Valve

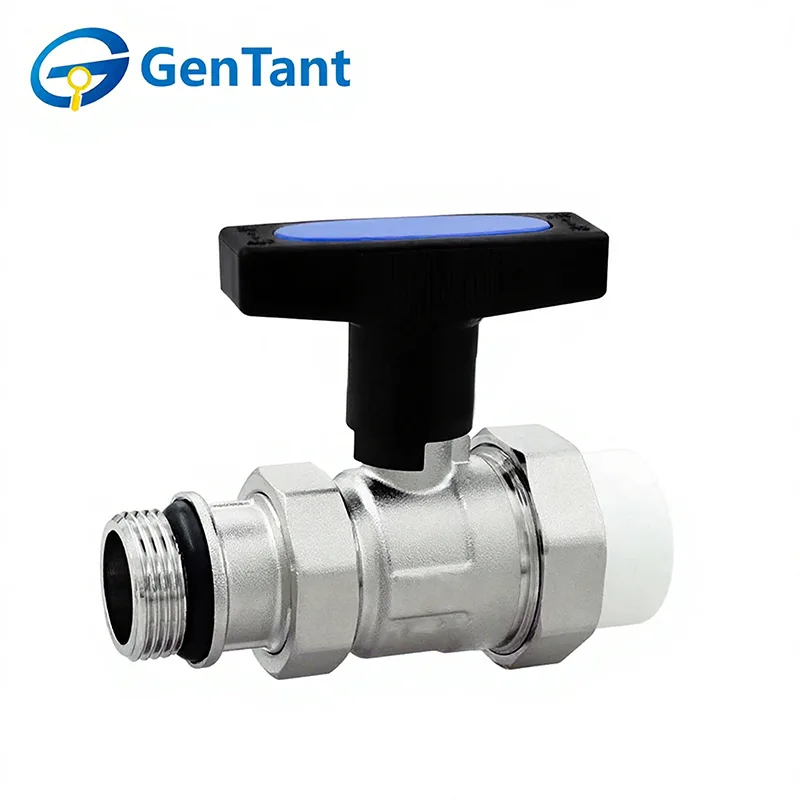

The Long Shank Return Valve is designed to allow fluid to flow in one direction while preventing backflow, making it ideal for hydronic heating, cooling circuits, and solar thermal systems. The defining characteristic of this valve is its extended shank, which enables installation in deep-set manifolds or recessed piping systems while keeping adjustment ports accessible. By maintaining hydraulic separation and stable thermal performance, these valves are crucial in modern HVAC setups.

Features and Applications

Long Shank Return Valves offer several advantages for fluid system management:

• Extended Shank: Ensures easy installation through thick partitions and recessed manifolds.
• Reliable Flow Control: Prevents reverse flow to maintain system balance and efficiency.
• Durable Construction: High-quality materials like HPb59-1 brass, PTFE seats, and EPDM gaskets.
• Wide Application: Ideal for underfloor heating, radiator loops, and solar thermal circuits.
• Accessible Maintenance: Valve body design facilitates inspection and stem adjustments.

Technical Specifications

The table below summarizes typical specifications for GenTant Long Shank Return Valves:

These components ensure a reliable and durable solution, suitable for long-term usage in high-performance HVAC systems.

Installation Guidelines

Proper installation is critical to ensure performance and longevity:

1. Clean and prepare the piping system thoroughly before installing the valve.
2. Inspect the valve ports and seating surfaces for cleanliness.
3. Support the valve properly to avoid stress from connecting pipes.
4. Verify the valve’s pressure and temperature ratings match the system requirements.
5. Cycle the valve fully from open to closed before placing into service.
6. Ensure the packing nut is correctly tightened after installation.

Operating Instructions

Long Shank Return Valves are manually operated:

• Turn the handle counterclockwise to open.
• Turn the handle clockwise to close.
• Ensure smooth operation by cycling periodically, especially after initial installation.

Inspection and Maintenance

These valves require minimal maintenance:

• Periodically cycle the valve from open to closed to maintain smooth operation.
• If stem packing leaks, tighten the packing nut about a quarter-turn until leakage stops.
• Never repack the valve under system pressure.
• Replace packing material when replacing the valve stem.

Frequently Asked Questions

Q1: What is the advantage of the long shank design?
A1: The extended shank allows installation in recessed or insulated systems, maintaining accessibility for maintenance while ensuring reliable flow control.

Q2: Can Long Shank Return Valves be used in solar thermal systems?
A2: Yes, they are ideal for solar thermal circuits, ensuring return flow is balanced and efficient across the loop.

Q3: How often should maintenance be performed?
A3: Routine inspection is minimal; occasional cycling and checking the packing nut are sufficient for optimal performance.
